GB 15
Nokia smart switch
SCART

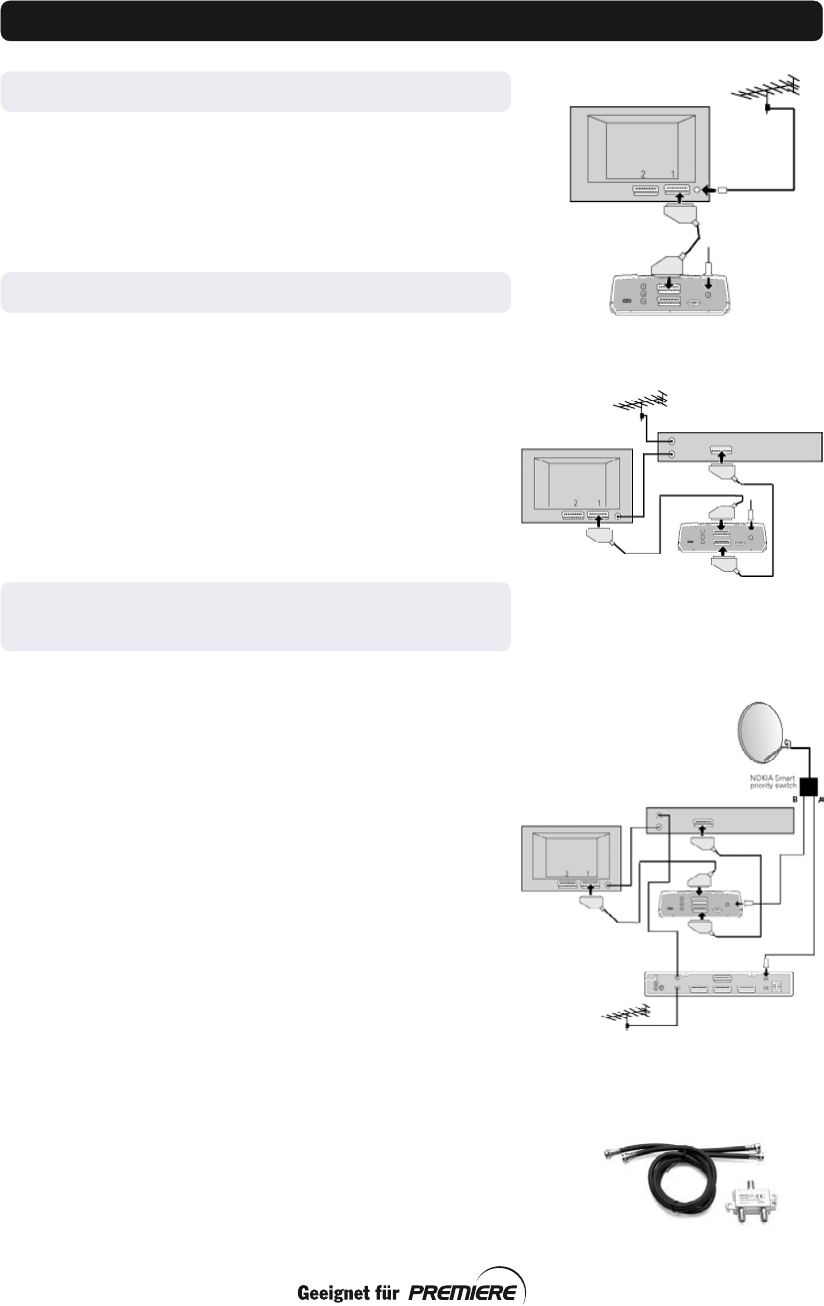

Connecting a TV and VCR
Refer to your VCR’s manual for full instructions.
• Connect one SCART cable from the main SCART socket on the
TV to the TV SCART socket on the Mediamaster.
•Connect another SCART cable from the VCR
to the AUX SCART socket on the Mediamaster.
• Connect the RF cable from the RF output on the VCR to the
TV aerial input on the TV.
• Connect the TV aerial to the RF input socket on the VCR.
• Connect a SCART cable from the main SCART socket on the
TV to the TV SCART socket on the Mediamaster.
• Connect a SCART cable from the VCR to the AUX SCART
socket on the Mediamaster.
•Connect an RF cable from the RF output on the VCR to the TV
aerial input on the TV.
• Connect an RF cable from the RF output on the analogue re-
ceiver to the RF input socket on the VCR.
• Connect the TV aerial to the RF input socket on the analogue
receiver.
In order to switch the signal from the dish between the ana-
logue and digital receivers, you will need a Nokia smart switch
(at A B in the diagram)
or
a Universal Twin LNB.
Nokia smart switch
•Connect a coaxial cable from output A on the smart switch (ac-
cessory) to the LNB socket on the analogue receiver.
• Connect a coaxial cable from output B on the smart switch to
the ANTENNA socket on the Mediamaster.
The analogue receiver must be switched OFF (in stand-by
mode) when you want to watch digital satellite channels
from the Mediamaster.
Connecting an analogue satellite receiver
and a VCR
Connecting to the TV
• Connect the SCART cable between the main SCART socket
on the TV and the TV SCART socket on the Mediamaster.
• Connect the TV aerial to the TV.
VCR
Mediamaster
SCART
SCART
RF
VCR
With Nokia smart
switch
Analogue receiver
SCART
RF
Installation of the Mediamaster
