62 MS6000-EU-EN V1.4 8/12
Making a Diode Measurement
To make a measurement on the diode, perform the following:
1) Press the diode key; the diode symbol appears at the top of the screen. .
2) Insert the black lead into the COM banana jack input and the red lead into the V//C
banana jack input.
3) Connect the red and black leads to the diode; the voltage value of the diode is displayed
on the screen in volts. The screen will then resemble the image in figure 7-3.

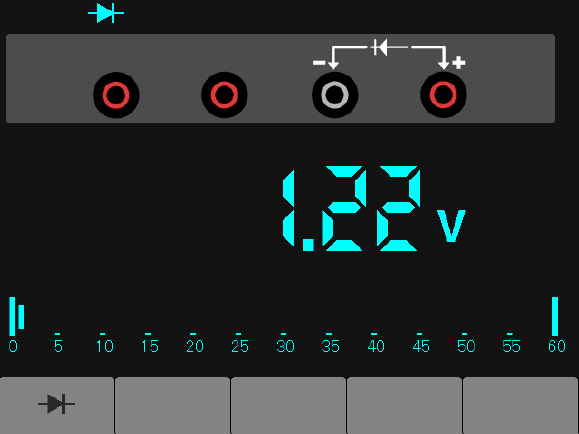

Figure 7-3 Diode Measurement
