Working with Larger Designs

6-28 Electronics Workbench

3. Click once on the component to select it and select

Place/Bus Vector Connect to display the

Bus Vector Connect dialog box.

4. In the

Component box, select the side of the component from which terminals should be

connected from the

Pins drop-down list. The list below the Pins field is populated based on

your selection.

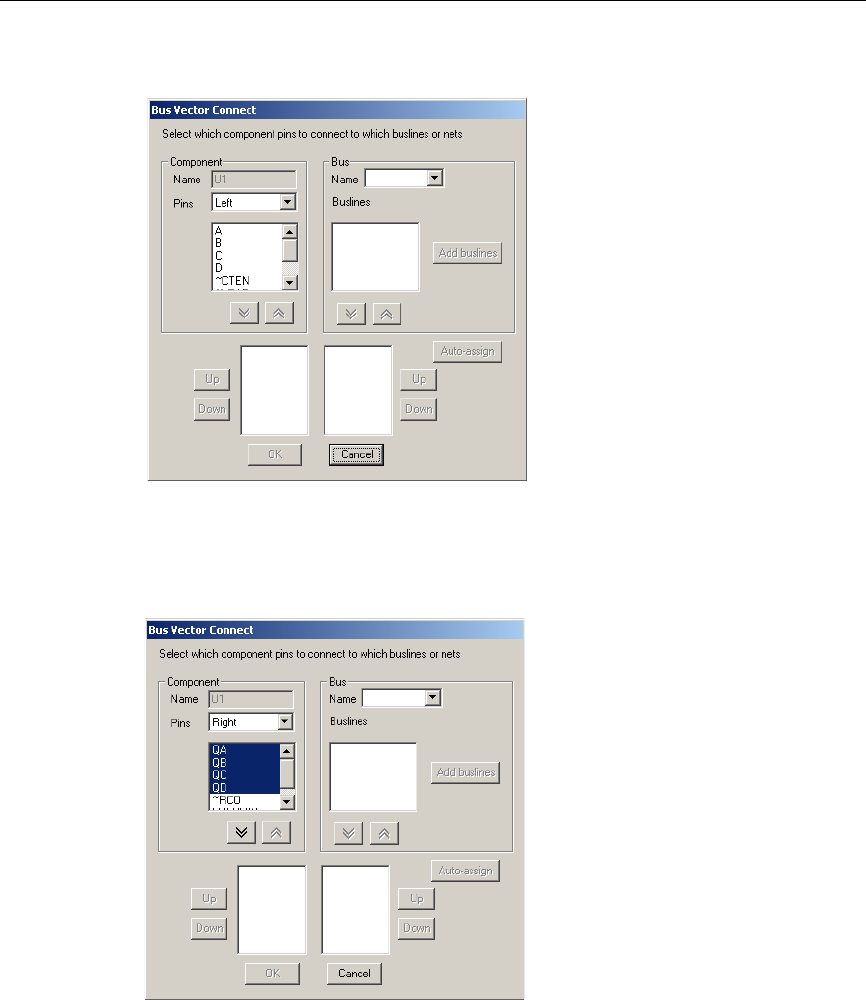

5. Highlight the pins that you wish to attach to the bus, as in the example below.
