E-15
: •
The diffusion plate cannot be used when the PPO-05
is mounted.
CAUTION
Detaching
First make sure the case is completely dry.
While gently holding the diffusion plate and
standard port, slowly turn the two buckles on
both sides of the standard port by about 110° in
the opening direction (counterclockwise).
Keep turning the buckles gently to separate the
diffusion plate and standard port completely
from the case.
Pull the diffusion plate from the standard port in
the direction of the arrow to separate them.
Attaching
Align the diffusion plate’s rear window with
the case’s diffusion guides .
Insert the standard port into the case so that the
protrusion on the diffusion plate mount on the
top panel of the standard port fits into hole on the
port mount’ on the front bottom of the diffusion
plate.
Make sure that the diffusion plate is wedged between the front
of the case and rear of the standard port, then turn the buckles
on both sides of the standard port clockwise to secure them.
(For details on how to mount the standard port, see
“Detaching/attaching the standard port” on the previous page.)

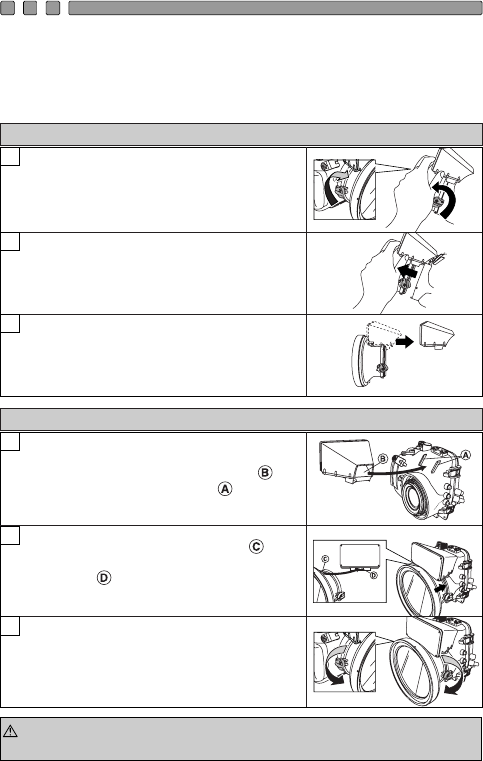

Detaching/attaching the diffusion plate
The diffusion plate on the case is detachable. Remove the diffusion plate
when using the optional PPO-05 Wide Port or when the diffusion plate is
not necessary. To attach the diffusion plate, follow the procedure below.
1
2
3
1
2
3
