Seal the Case by turning both buckle lock levers down in
arrow direction. When one of the buckles is left open, the
Case will not be sealed and water leakage will be caused.
CAUTION
Seal the Case.

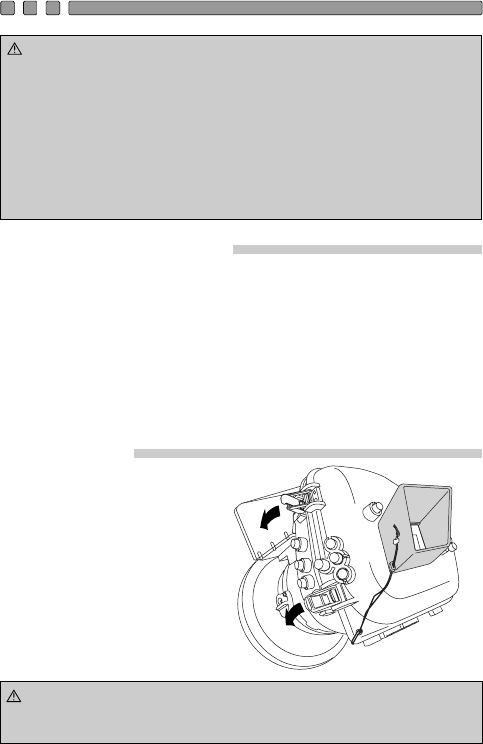

When the rear lid is closed
(quietly, so that the O-ring
will not come out of the
groove), the buckles are
engaged with the edge of
the rear lid, and the buckle
lock levers are pushed down
in arrow direction, the Case
will be sealed airtight.
Check the loading status.
Always perform the following final checks before sealing the Case.
ț
Has the camera been inserted properly so that the zoom lever works?
ț
Has the silica gel bag been placed in the correct position and in the proper
way?
ț
Are both the O-rings and the contact surfaces of the front lid free of dirt and
other foreign matter?
ț
Are the O-rings correctly positioned in the groove of the front and rear lids?
ț
Is the lens port attached properly and are the buckles locked correctly?
ț
the TTL cable connector cap attached tightly?
:
Insert the silica gel all the way at the specified location and
with the specified orientation. When the orientation is not
correct, the silica gel bag will be caught when the Case is
sealed and water leakage will be caused.
Attempting to seal the Case with the bag inserted only part of
the way will cause the silica gel bag to get caught by the O-ring
and water leakage will occur.
Once silica gel has been used, the moisture absorption
performance will be impaired. Always exchange the silica
gel when the Case is opened and closed.
CAUTION
