Getting Started
Main Page Sequence
40
Reference
To change the waypoint symbol:
1. Highlight the waypoint symbol fi eld to the left of the waypoint name and press ENTER.
2. Use the ARROW KEYPAD or DATA ENTRY keys to select the desired symbol and press ENTER.
To change the comment/position coordinates/depth/water temperature:
1. Highlight the desired fi eld and press ENTER.
2. Use the ARROW KEYPAD or DATA ENTRY keys to edit/enter the data. To drop to the next line, press to
the right on the ARROW KEYPAD. Press ENTER when done.
On the waypoint Review page, you may also delete the selected waypoint, view the waypoint on the
map, and move the waypoint on the map.
To delete a waypoint:
1. On the waypoint Review page, use the ARROW KEYPAD to highlight the ‘Delete’ button and press
ENTER.
A waypoint may also be modifi ed by moving or “projecting” the distance and bearing from its current
location to a new location.
To move or project a waypoint:
1. Select the ‘Move Wpt’ button.
2. The Map window on the right side highlights with the selected waypoint centered and highlighted on
a map display. The word “MOVE” appears below the pointer. Use the ARROW KEYPAD to move the
waypoint to the new position. The distance and bearing from the waypoint’s location displays in the upper
left of the Map window.
3. Press ENTER to move the waypoint to the new location.
4. Press FCTN to return to the left side of the Review page.
5. Highlight ‘OK’ or ‘Next’ and press ENTER to save the new location.

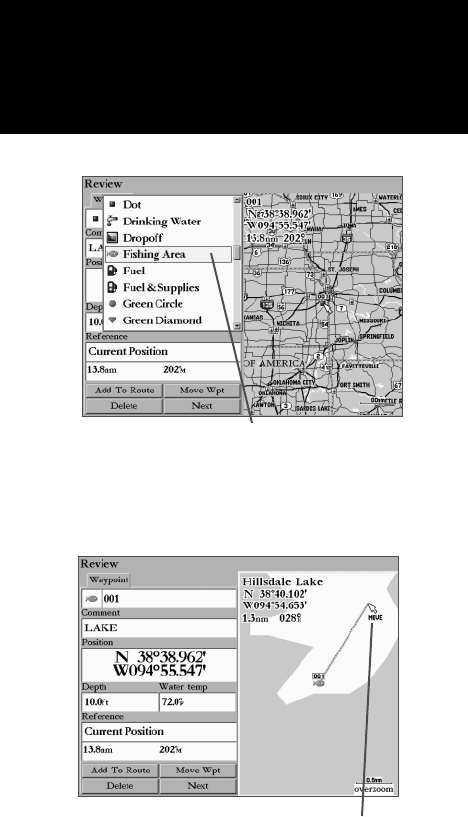

Changing a Waypoint symbol.
Reviewing and Editing Waypoints
Use the ARROW KEYPAD to move the
waypoint to a new position on the map.
