Dolphin® 9500 Series User’s Guide
Logging
The event log is an ASCII text file named “LOG8021X.TXT” located in the directory defined by the WINDIR environment variable
(usually the Windows directory). The information the log records is determined by the log settings on the System tab.
The format of the entries is
Time Stamp Message Text
The Refresh button at the bottom of the screen is used to update the log file while you are reading it. If the file gets too large, old
entries are automatically deleted.

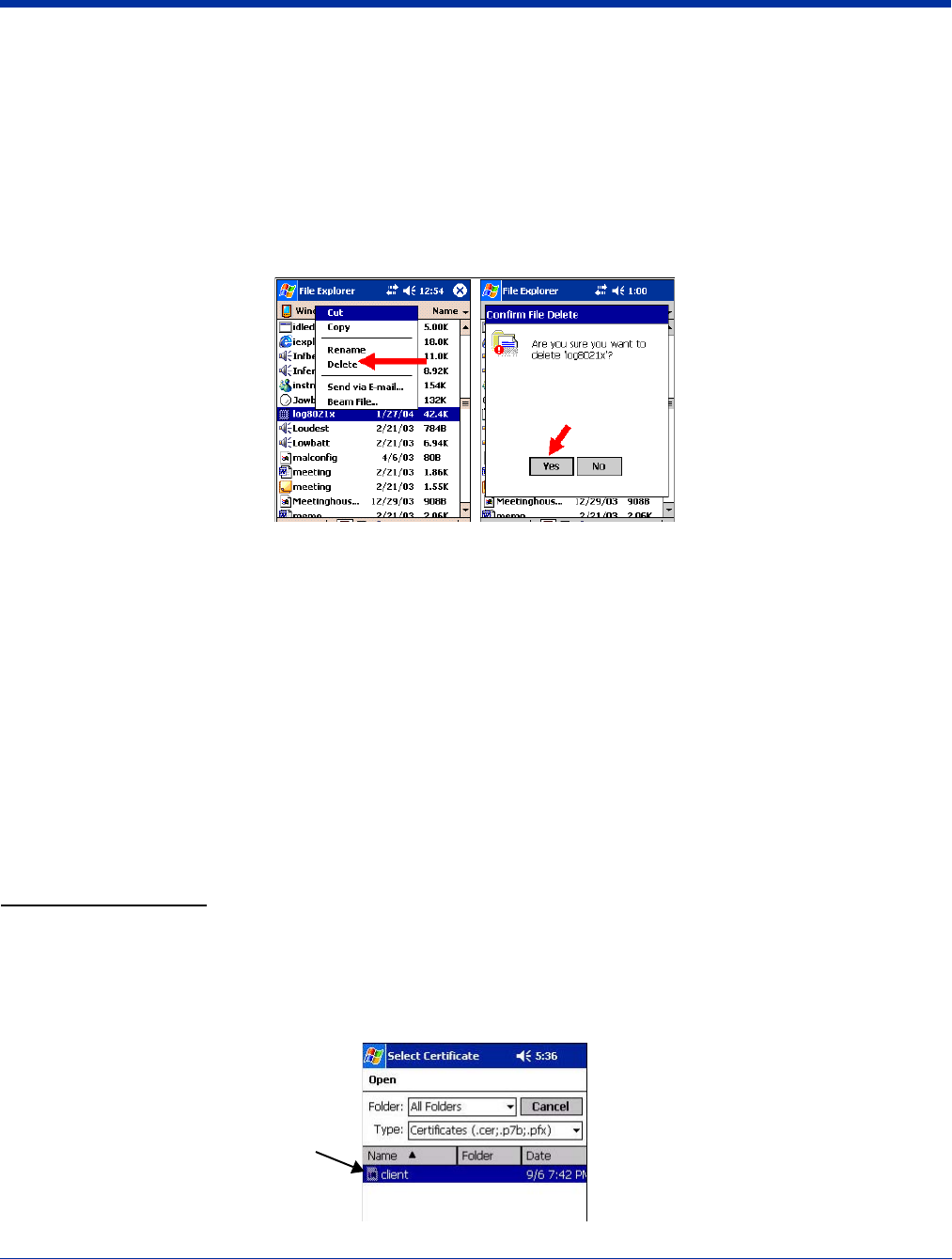

If you wish to start with a blank file, exit from the Client (so the icon no longer appears at the lower right of the screen) and delete
the log file (log8021x) in File Explorer.
When you restart the Client, a new log file is created.
Installing Certificates with CertAdd
Certificate Requirements
During configuration, you may have specified one or two certificates to use during the authentication process. The specified
identity should match the Issued to field in the certificate and should be registered on the authentication server (i.e., RADIUS
server) that is used by the authenticator. In addition, your certificate must be valid on the authentication server. This requirement
depends on the authentication server and generally means that the authentication server must know the issuer of your certificate
as a trusted Certificate Authority (CA).
If the selected certificate does require a password or pass phrase to decode the private key, enter this value in the “Certificate
Pass Phrase” field. This value will be encrypted when the configuration is saved. However, on some systems, there may not be
a certificate. If that is the case, you can use the section below as a primer on OS X certificate management.
About CertAdd
CertAdd is a standalone utility that allows certificates to be selected and installed on a Windows Mobile device.
Installing Certificates
Client or CA certificates can be imported from *.cer (same as *.der), *.p7b, or *.pfx files.
1. Download the certificate file to the My Documents folder. The location isn’t critical, although you may want to create a
standard folder for consistency.
2. Go to Start > Programs > Meetinghouse Certificate Installer. All valid certificate file types located in the My Documents
folder appear in the list.
