V2500 memory configurations

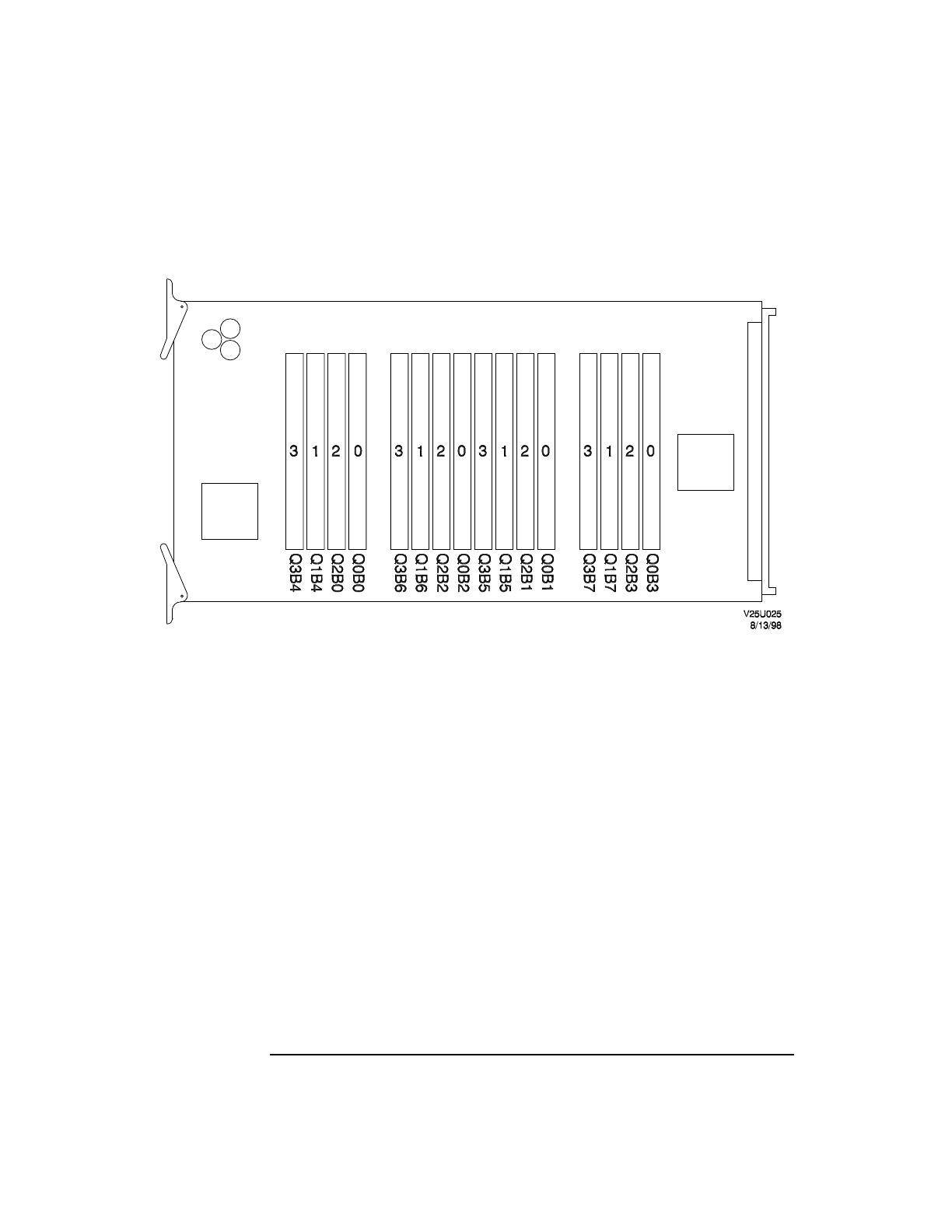

Figure 39 V2500 DIMM locations
Example:
Q2B3: Quadrant 2, Bank 3
V2500 DIMM configuration rules
Use the following rules to plan the memory board DIMM configuration:
All memory boards must be populated identically.
Single node memory boards may be populated in 1/4, 1/2, 3/4, or full
increments.
Multi node memory boards may be populated in only 1/4, 1/2, or full
increments.
All DIMMs within a quadrant must be of the same size: 32 Mbyte,
128 Mbyte or 256 Mbyte.
DIMMs in quadrant 0 can be of a different size than DIMMs in
quadrant 2 or 3 without degrading performance.
