GPSMAP 5000 Series Owner’s Manual 19
uSInG combInatIonS
usInG
combInatIons
usInG combInatIons
Use the Combinations screen to view a combination of different screens at the same time. The
number of options available on the Combinations screen depends on the optional network devices
you have connected to your GPSMAP 5000 series unit and if you are using an optional BlueChart g2
Vision SD card. You can choose to combine two, three, or four screens.

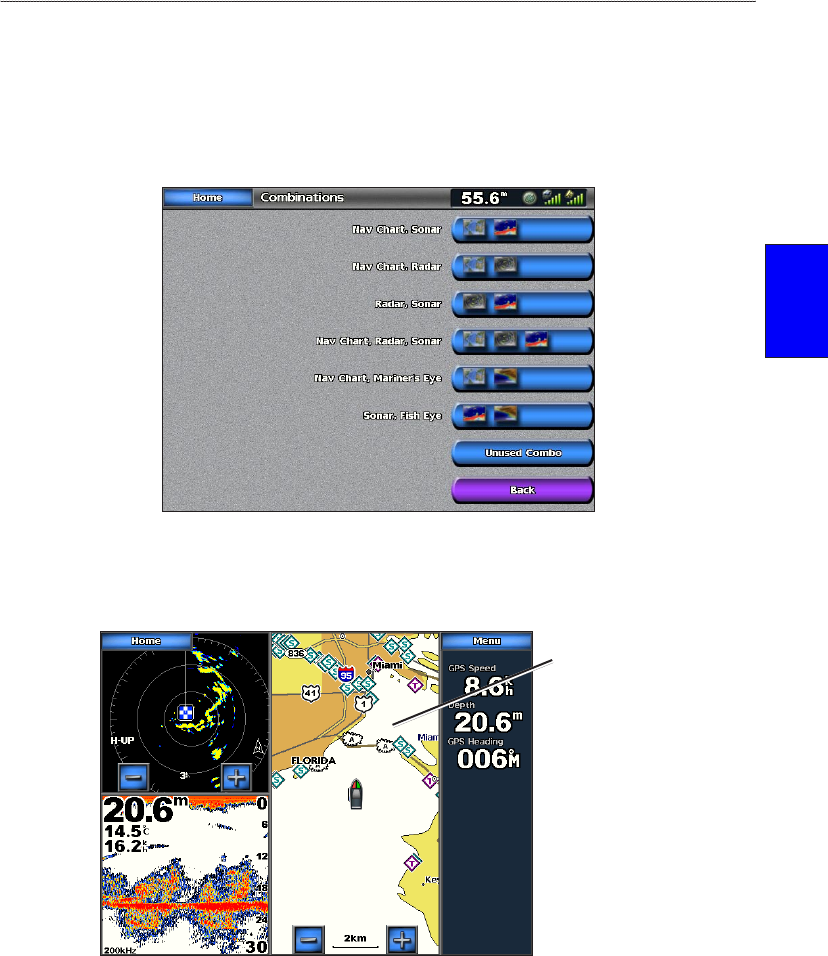

Combinations Screen
When you choose Combinations from the Home screen, you are presented with a list of possible
screen combinations to choose from. Once you select a combination, you can customize it.
Radar, Sonar, and Navigation Combination
Focus screen
When viewing three combined screens, one is larger than the rest, and acts as the screen in focus.
To switch the focus screen, touch Menu > Change Combination. The charts are numbered, with a
corresponding button on the right of the screen. Touch the numbered button of the display you want
to change and then touch the type of screen you want to appear in that window. For a description of
the settings for each screen, see the corresponding section in this manual.
