uSInG radar
usInG
radar
MARPA Target (only appears when you are targeting a tagged MARPA object)—opens the
MARPA target information window. You can get MARPA information or remove MARPA objects
from this window.

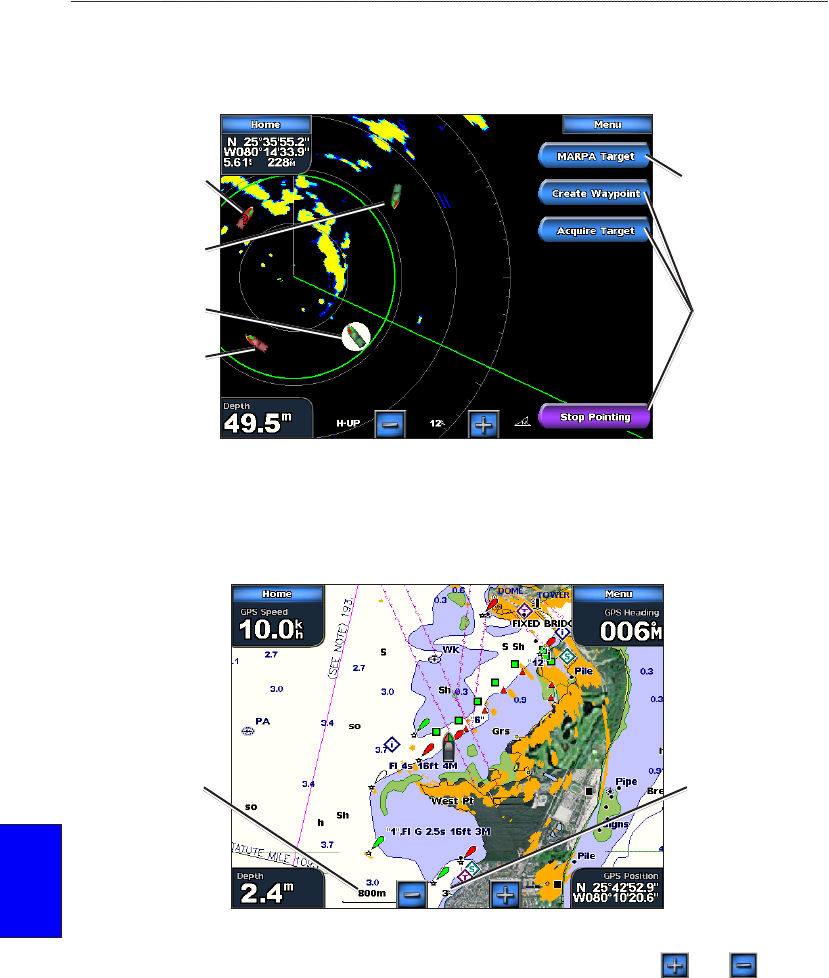

MARPA Targeting
Tracking
MARPA object
Target options
MARPA object
targeted
Opens MARPA
target information
window
MARPA target
status unknown
(Lost)
Dangerous
MARPA object
Understanding the Radar Overlay Screen
The radar overlay screen places the radar picture directly onto the navigation chart. To access the
Radar Overlay screen from the Home screen, touch Radar > Radar Overlay.
Radar Overlay Screen
Map scale
Radar range
The radar picture appears in orange and overlays the navigation chart. Use the and buttons
to zoom in and out:
Zooming while panning the map only affects the zoom scale of the map - the radar range
remains the same.
Zooming while the map is locked on the boat (not panning) affects the zoom scale of the map
as well as the radar range. When you reach the limit of the radar range, the screen does not
zoom out further.
•
•
