48 GPSMAP 5000 Series Owner’s Manual
uSInG Sonar
usInG
sonar
usInG sonar
When connected to an optional sounder module such as the GSD 22 and a transducer, your unit can
be used as a shnder/asher. The sounder module connects through the Garmin Marine Network
and shares sonar data with every chartplotter connected to the network.
With the GPSMAP 5000 series unit, you can view sonar in different ways, depending on the type of
transducer you are using. Touch Sonar from the Home screen to view the available choices.
Understanding the Full Screen
From the Home screen, touch Sonar > Full Screen to view a full-screen graph of the transducer’s
sonar readings. The range scale along the right side of the screen shows the depth of detected objects
as the screen scrolls from the right to the left.
From the Home screen, touch Sonar > Full Screen.

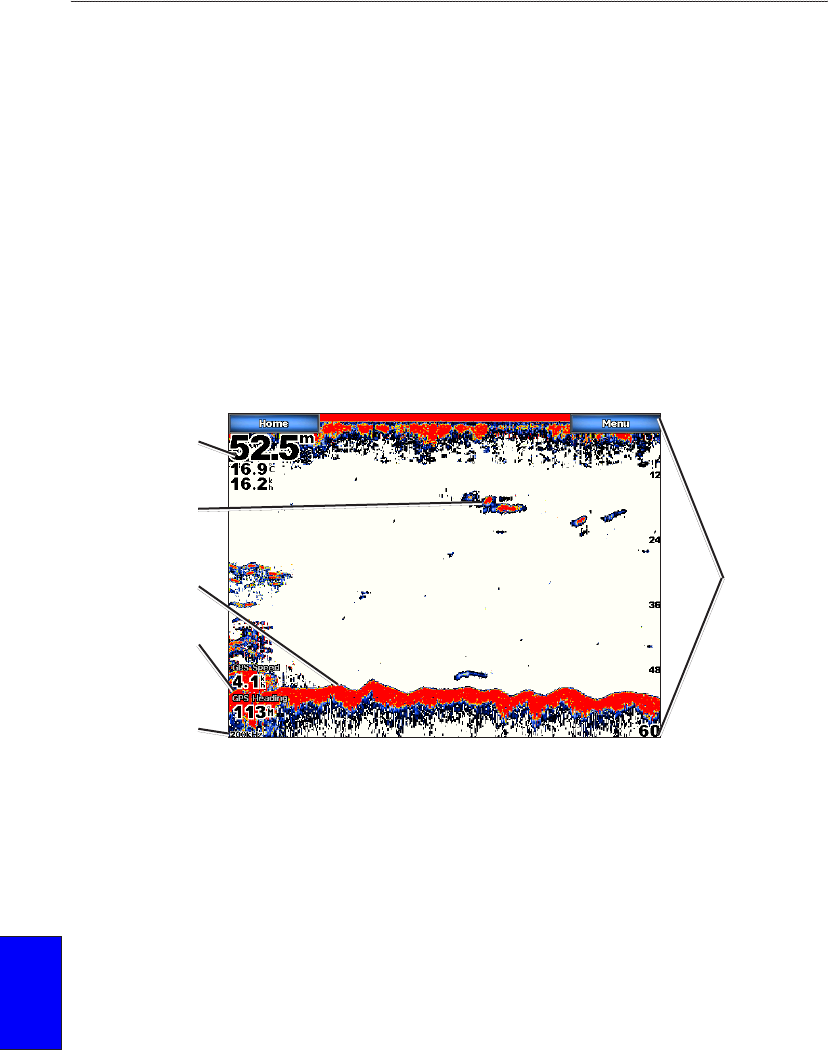

Sonar Full Screen
Suspended
target
Bottom
Depth, temp, and
water speed
GPS speed and
GPS heading
Transducer
frequency or
beam width
Range
Understanding the Split Zoom Screen
Use the Split Zoom screen to view the full sonar data from the graph and a zoomed in portion on the
same screen.
From the Home screen, touch Sonar > Split Zoom.
