178 Adding and Replacing Parts
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Coin-cell Battery
1
Follow the procedures in "Before You Begin" on page 155.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 174).
3
Remove the keyboard (see "Removing the Keyboard" on page 176).
4
Remove the coin-cell battery connector from the connector on the system
board.
5
Using your fingers, pry the coin-cell battery from the system base.
Installing the Coin-Cell Battery
1
Place the battery into position, pressing firmly to affix the battery to the
sticky tape on the base.

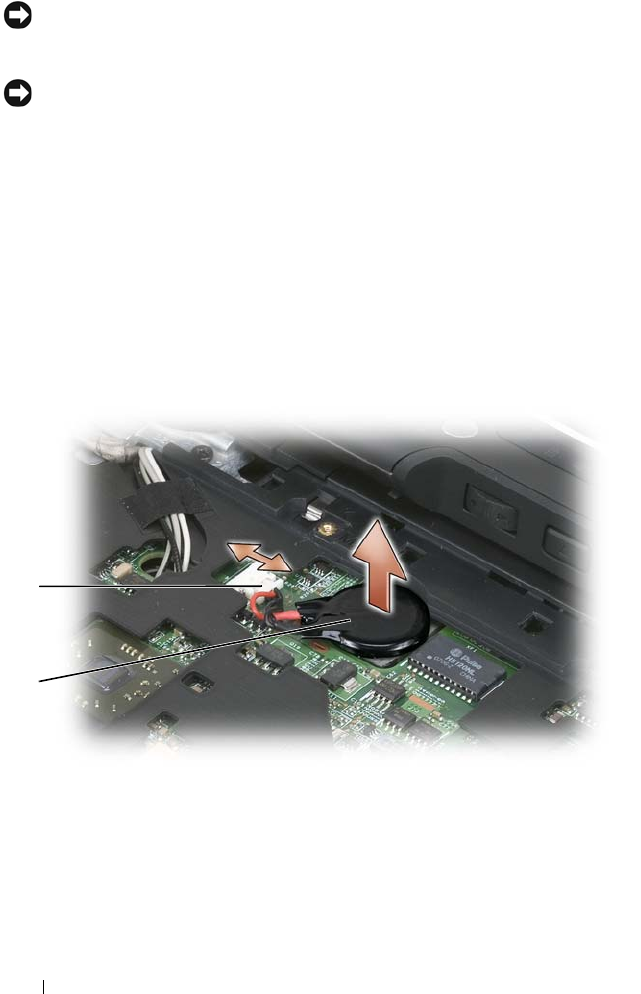

1 coin-cell battery connector 2 coin-cell battery
1
2
