40 About Your Tablet-PC

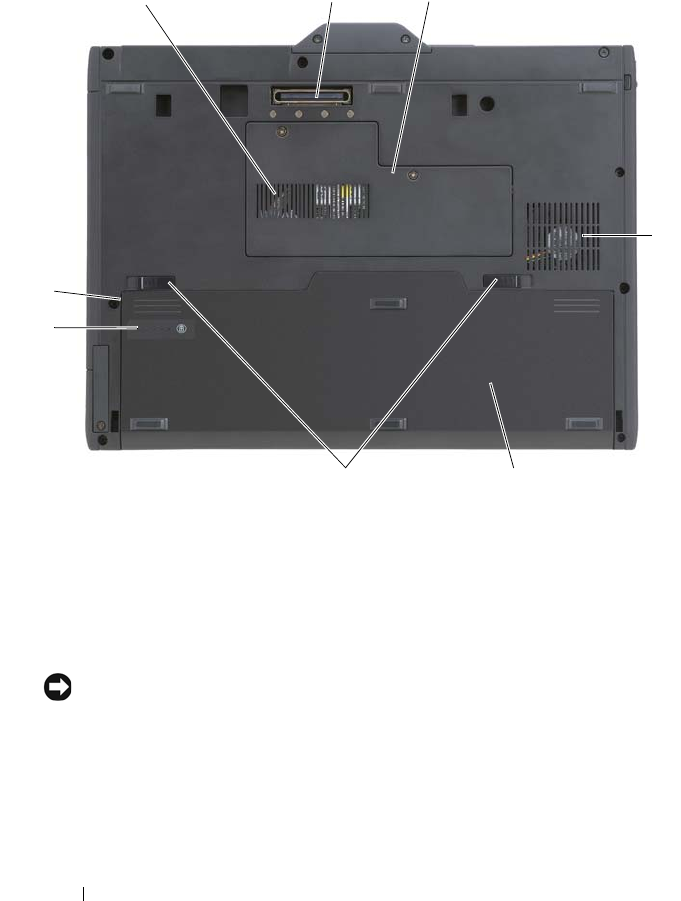

Bottom View
NOTE: Your Tablet-PC’s Microsoft
®
Windows
®
License label is located under the
main battery in the battery bay of your Tablet-PC (see "Removing the Main Battery"
on page 158).
AIR VENTS The Tablet-PC uses an internal fan to create airflow through the vents,
which prevents the Tablet-PC from overheating.
1 air vent 2 docking-device connector
3 memory module and Mini-Card
cover
4 fan vent
5 main battery 6 battery-bay latch releases (2)
7 battery charge gauge/health gauge 8 battery bay (beneath main battery)
2 3
6
4
7
5
1
8
