32 About Your Tablet-PC
Left Side View
PEN — To eject the pen from the compartment, press and release the end of the pen.
PEN INDICATOR LED — Indicates pen status. See "Ejecting and Storing the Pen" on
page 65.
EXTERNAL WIRELESS WAN ANTENNA — If your Tablet-PC supports wireless wide
area network (WWAN) connectivity, you must extend and orient the external WWAN
antenna for optimal signal strength.

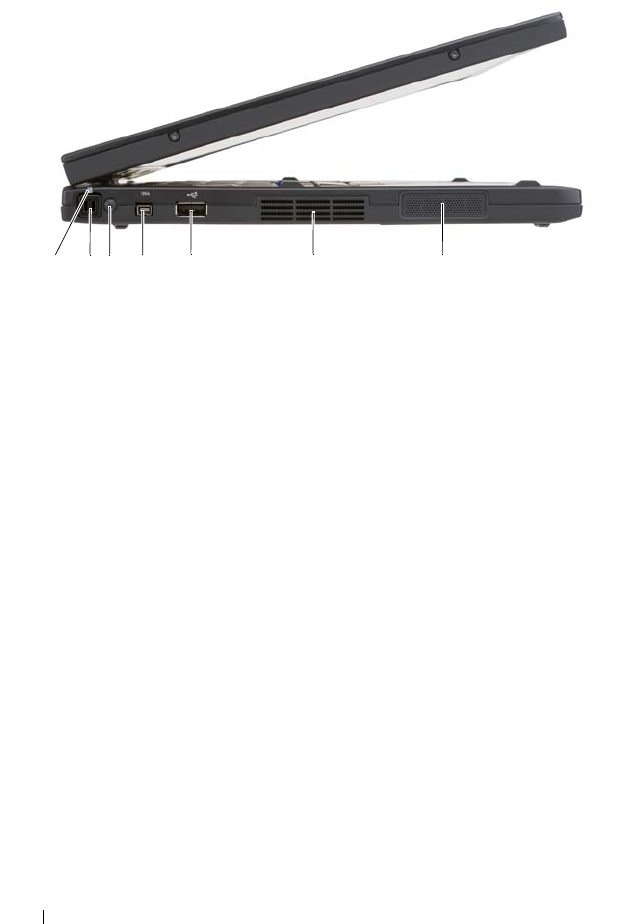

1 pen indicator LED 2 pen
3 external wireless WAN antenna
NOTE: The external antenna is
provided with WWAN cards only and
is not included in the standard
computer configuration. The
computer comes with a plug that you
need to remove prior to installing the
antenna and WWAN card.
4 IEEE 1394 connector
5 USB connector 6 air vent
7 speaker
