8-1-5 Writing to Microcomputer with Internal EPROM
Fit in the writing adapter and position the No.1 pin.

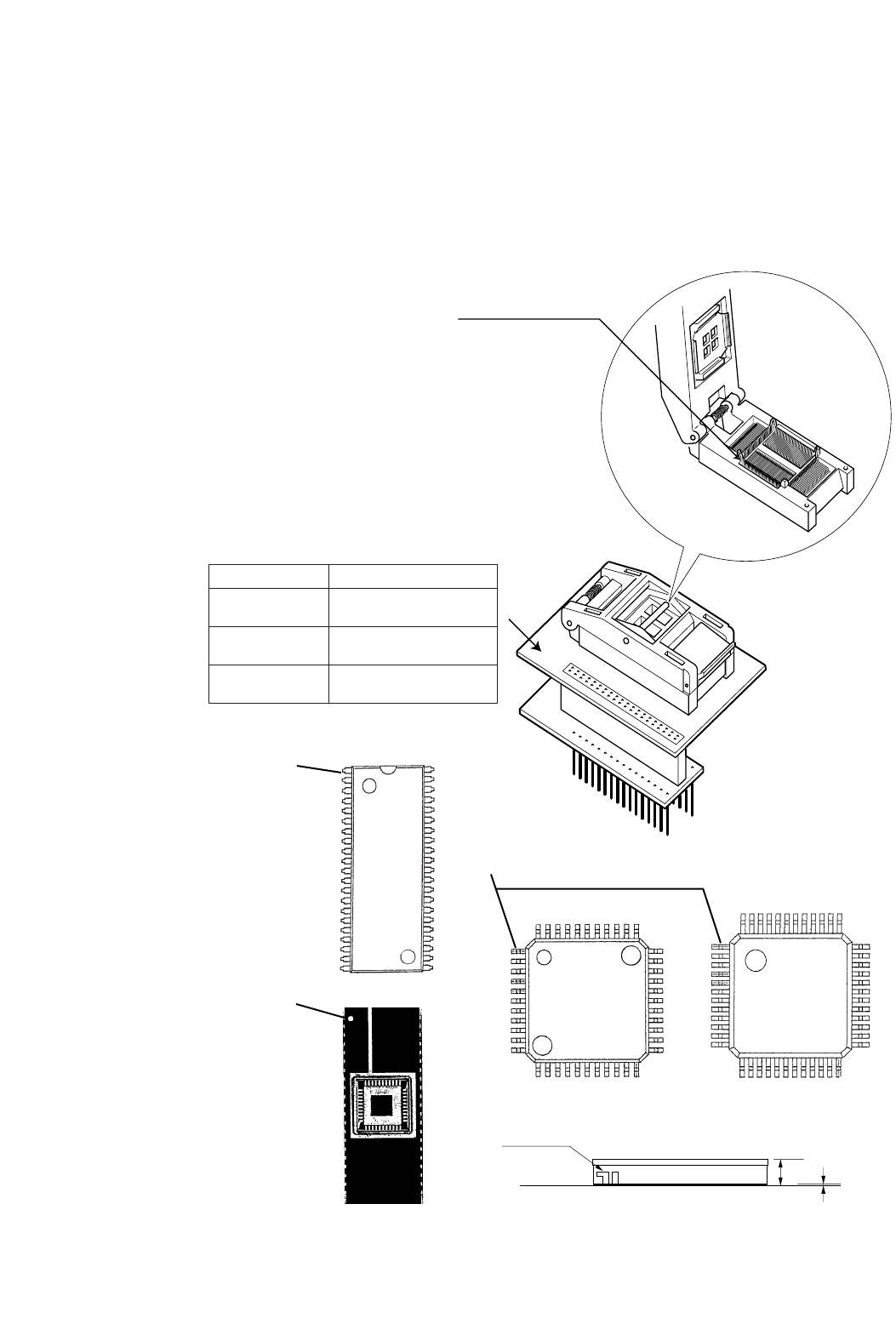

Figure 8-1-1 Mount on the writing adapter and position of No.1 pin.
Chapter 8 Appendices
134
EPROM Versions
No.1 pin must be matched to
this position.
*The socket of an adapter
varies according to the
package types.
Package type Product name
OTP42SD-101CP11
OTP44QF14-101CP11
OTP48FH7-101CP11
42-SDIP
44-QFP
48-QFH
No.1 Pin
No.1 Pin
No.1 Pin
(MN101CP117BF) (MN101CP117HP)
(MN101CP117DP)
(PX-AP101C11-SDC)
(top view)
(PX-AP101C11-FBC)
(side view)
(top view)
