Testing AMPS Base Stations
Connecting the Test Set to Your Base Station
Connecting the Test Set to Your Base Station

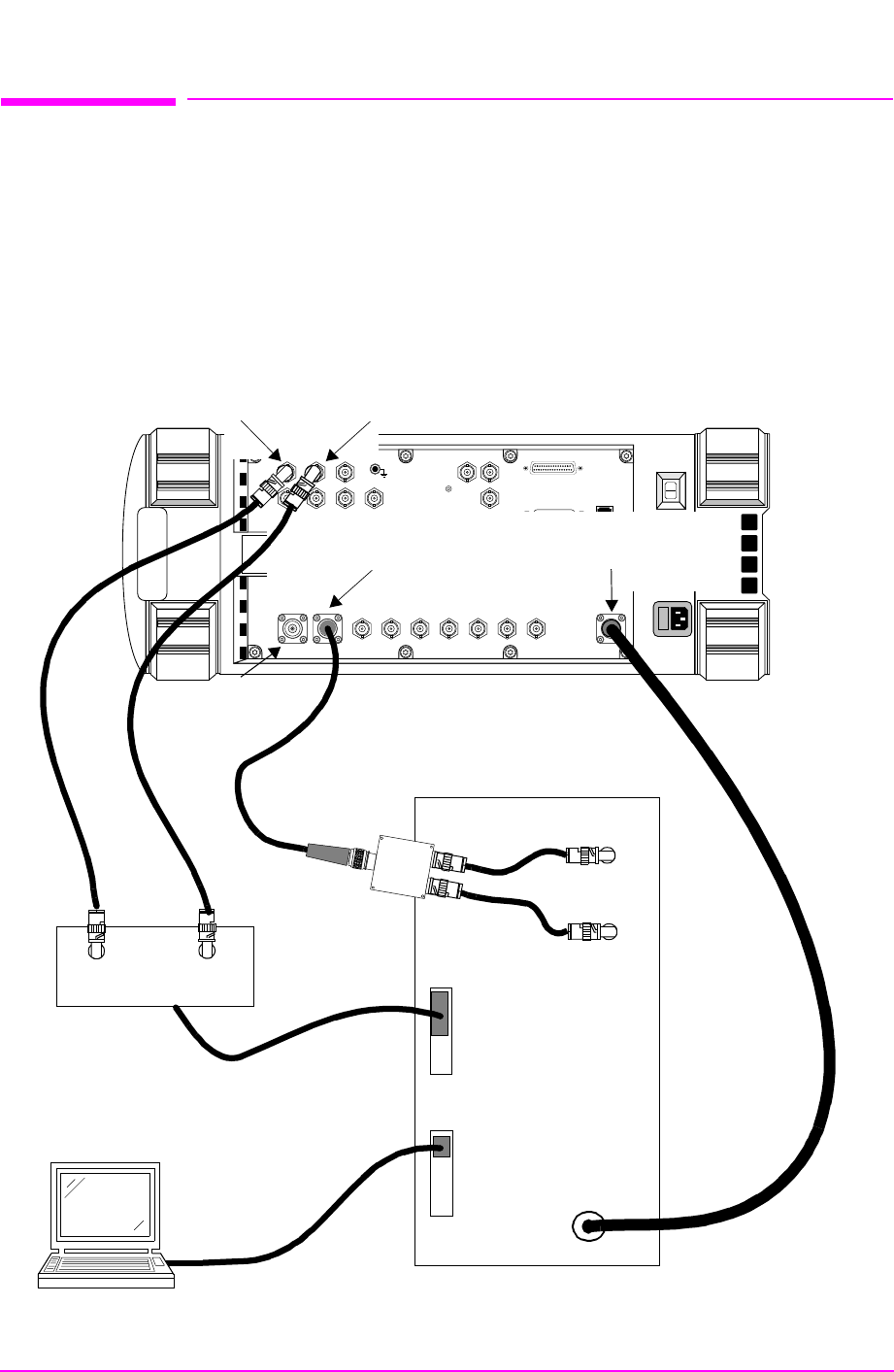

The connections shown in Figure 2-1 indicate a “generic” base station
using a test interface for audio test signals and a laptop computer
running a control program to control the base station. A power splitter
is used for testing the receiver ports. Although this is a common setup
for performing tests, audio and RF connections to base stations and the
ways base stations are controlled vary among manufacturers.
Figure 2-1 Connections Between the Test Set and the Base Station
side1_75.eps
PARALLEL PORT
ANT IN
(≤60mW)
DUPLEX OUT
(RF Gen Out)
RF IN/OUT Port
(High Power RF Input)
Audio
Out
Audio
In
AMPS BASE STATION
TX
Local Control
Port
TX Mod RX Audio
Audio Test Signal
breakout port.
Laptop Running Control Program
Audio Signal
Test Interface
Receive A
Receive B
1
2
S
Power
Splitter
