46 Chapter 2
Testing AMPS Base Stations
Receiver Squelch Threshold

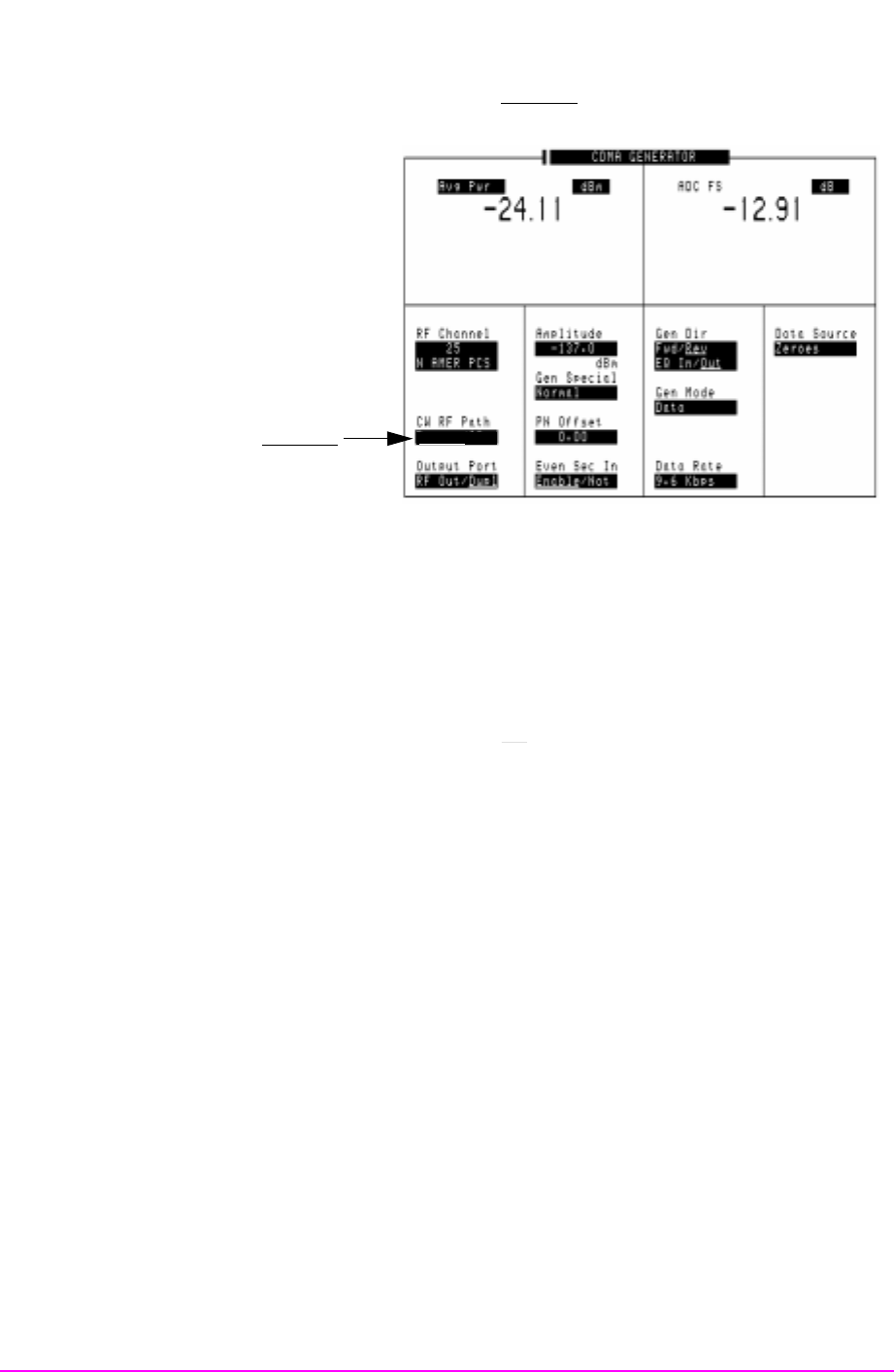

6. Set the CW RF Path field to Bypass. This turns off the IQ
modulation used for CDMA tests.
7. Press
SHIFT, RFAnl (AF Anl) to access the AF ANALYZER screen.
8. Set the AF Anl In field to Audio In.
9. Press the
RF Gen key to access the RF GENERATOR screen.
10.Set the AFGen1 To field to FM and set it to 8 kHz deviation.
11.Enter the transmitter’s channel number in the RF Channel field.
12.Set the Atten Hold field to On
. The prevents the Test Set from
changing its internal attenuators during the test to prevent
erroneous squelch interruption.
Set to Bypass.
Bypass/IQ
