Global Positioning System (GPS)

Rev 3.0B Feb.08 105

Sending Unsolicited TAIP Messages over the Local

Connection

StandardTAIPrequiresarequestbeforeGPSreportsaresent.

ThePinPointX,however,canbeconfiguredtoallowTAIP

formattedmessagestobesentoveranyUDPPortwithout

requestcommands.Thisisusefulforthoseapplicationswhich

canlistenforTAIPmessagesbutcannotsendUDPrequest

packets.

a. SettheS53portto1000.ThelocalIPaddresswill

automaticallybeused.

b. Set*PPLATSR,LocalReportType,toF0orF1.

c. Set*PPLATS,LocalReportingTimeInterval,to5to

sendreportsevery5seconds(canbeadjustedas

circumstanceswarrant).

d.

Streaming Messages (Local)

TheProductNamecanbeconfiguredtosendstandardTAIP

messages(sentences)inASCIIovertheserialportand/orUSB

portwithoutaPPPconnectiontothelocalcomputer.

SendthecommandATGPS1totheserialport,ATGPS2tothe

USBport,orATGPS3forbothtobegintheTAIPstream.The

examplebelowshowsthestreaminHyperTerminal

connectingdirectlytoaProductNameviathecomportand/or

USBport.Tostopthestream,witheitherterminalconnection,

use

thecommandATGPS0(thiscanbeenteredevenwhiledata

isstreaming).

Persistent Streaming

Tohavepersistentstreaming,allowingyoutostreamthedata

evenafterthemodemisreset,configure*PGPSandset

*PGPSRforTAIP .

Avoircoulerpersistant,tepermettantdecoulerlesdonnées

mêmeaprèsquelemodemestremisàzéro,configurentle

*PGPSet*PGPSR.

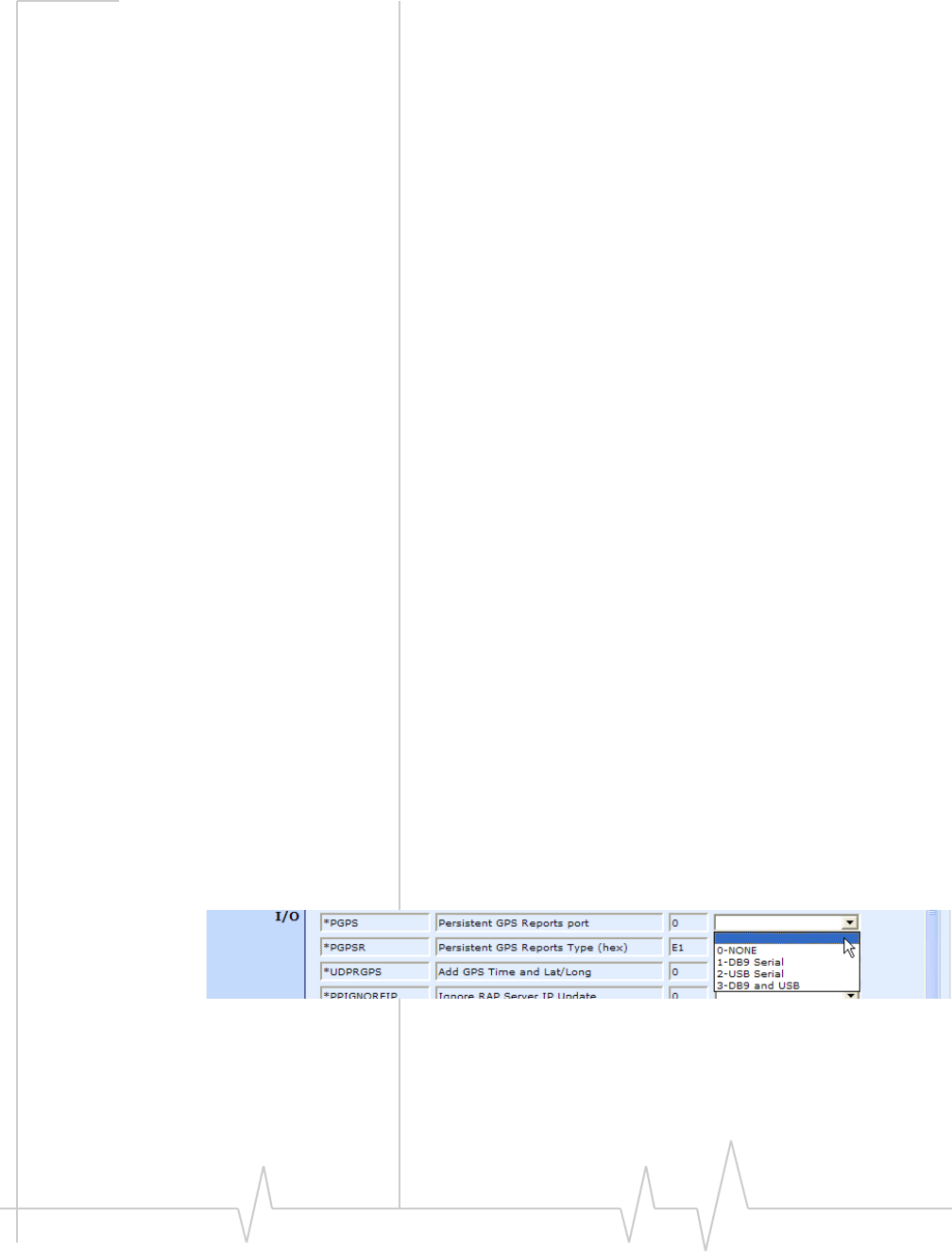

Figure 10-40: AceManager : PinPoint

‐*PGPS

0‐DisableTAIPstreaming.
