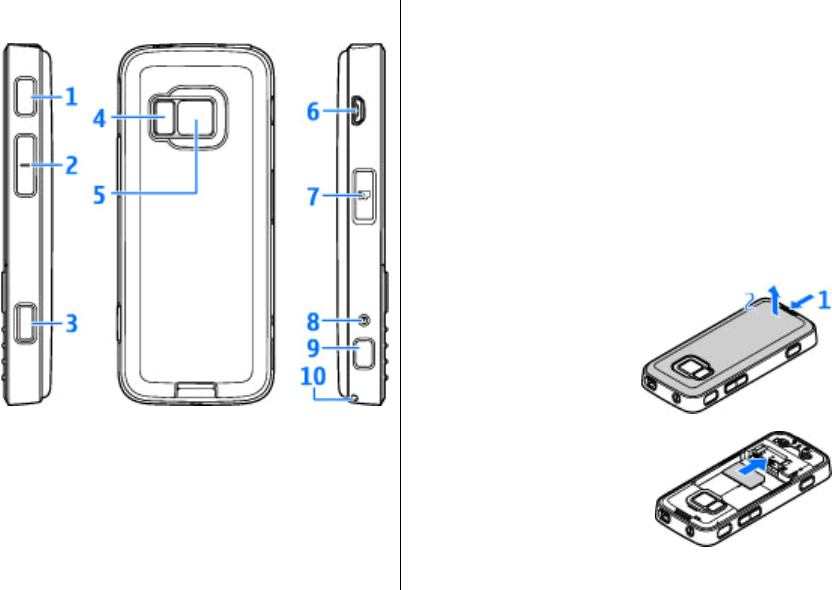

Keys and parts (back)
1 and 9 — Stereo speakers with 3- D sound effect
2 — Zoom/Volume key
3 — 2-stage capture key for auto-focus, still image
capture, and video recording
4 — LED flash
5 — Main camera for high resolution (up to 3.2
megapixels) image capture and video recording
6 — Micro USB connector to connect to a compatible
computer
7 — Memory card slot for a compatible microSD card
8 — Charger connector
10 — Hole for a wrist strap
Insert (U)SIM card and battery
A USIM card is an enhanced version of the SIM card and is
supported by UMTS mobile phones.
Always switch the device off and disconnect the charger
before removing the battery.
1. With the back of the device
facing you, press and hold
the release button and lift
up the cover.
2. Insert the SIM card into the
card holder. Ensure that
the bevelled corner on the
card is facing toward the
slot, and that the contact
area on the card is facing
down.
© 2008 Nokia. All rights reserved.14
