SHUTDOWN
One of the unique features of the Foampro F1000 is that it can be shut down for
storage without disconnecting or flushing the chemical hoses or the dispensing gun
itself.
The Foampro F1000 should be shutdown as follows:
Be sure that all valves are closed.
(See diagrams for valve locations)(See diagrams for valve locations)
(See diagrams for valve locations)(See diagrams for valve locations)
(See diagrams for valve locations) This
would include:
1 | The valve on top of the nitrogen cylinder
2 | The nitrogen valve on top of both chemical cylinders (“A” Chemical and “B”
Chemical)
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)
3 | The chemical valve on top of both chemical cylinders (“A” chemical and “B”
chemical)
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)
4 | The Chemical valve on the filter end of both the red “A” component hose
and the blue “B” component hose.
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)(See diagrams 52A & 52B)
(See diagrams 52A & 52B)
5 | Both the red chemical valve and the blue chemical valve on the F1000
dispenser
(See diagram 53A)(See diagram 53A)
(See diagram 53A)(See diagram 53A)
(See diagram 53A)
6 | Remove plastic nozzle from the F1000 dispenser, and clean any buildup of
product from the threads in the Mix Cartridge.
7 | Holding the F1000 dispenser so that the opening in the Mix Cartridge is
pointing up, place a few drops of solvent inside the threaded area, then thread
the Mix Cartridge plug (D620) into the end of the Mix Cartridge and tighten.
The Foampro F1000 Dispenser System is now ready for storage.
The unit can be stored with the hoses connected to the chemical cylinders. If it
is desired to remove the hoses from the chemical cylinders, do the following:
ShutdownShutdown
ShutdownShutdown
Shutdown
ProcedureProcedure
ProcedureProcedure
Procedure
4.1
Nitrogen
Supply
Hose
Nitrogen
Valve
Pressure
Relief
Valve
Cylinder
Chemical
Valve
Hose Filter
Chemical
Valve
Cylinder Valves - 17 Gal.
Closed
Open
Chemical
Valve
Positions:
Nitrogen
Supply
Hose
Nitrogen
Valve
Pressure
Relief
Valve
Cylinder
Chemical
Valve
Hose Filter
Chemical
Valve
Cylinder Valves - 60 Gal.
Closed
Open
Chemical
Valve
Positions:
Chemical
Filter

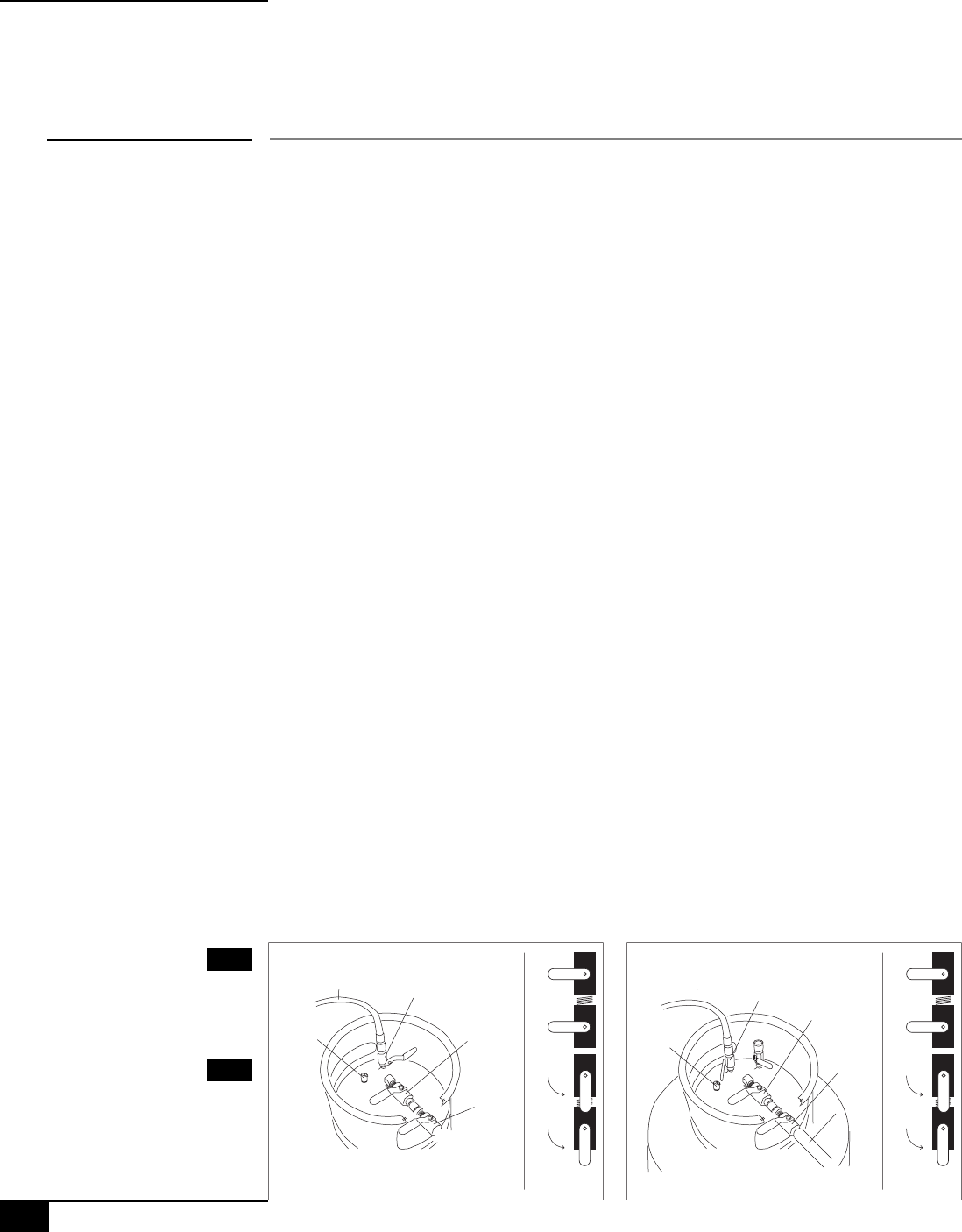

Diagram 52A
