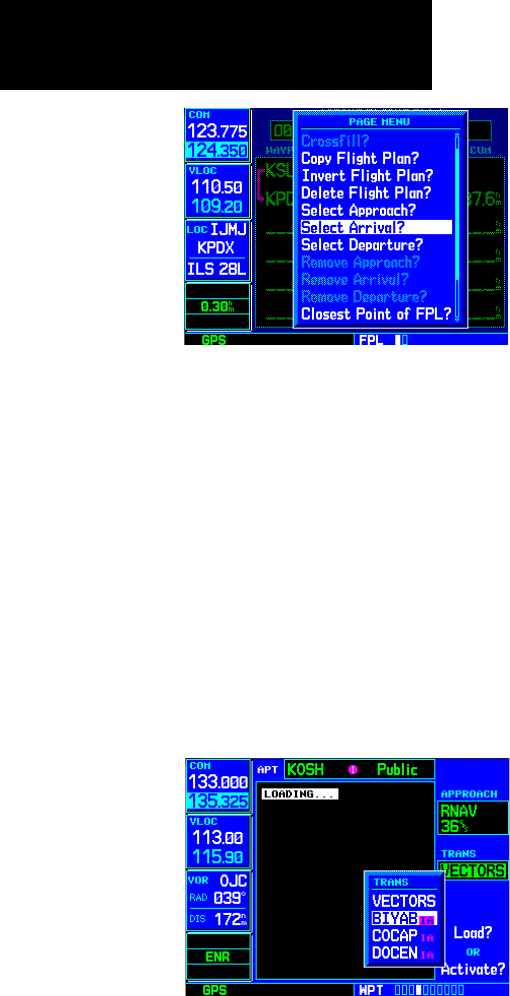

“Select Arrival?” and “Select Departure?”
allow you to select and use published arrival
routes (STARs) and published instrument
departures (SIDs).
3. A window appears listing the available arrivals
for your destination airport. Turn the small
right knob to select the desired arrival and
press ENT.
4. A second window appears listing available
transitions for the arrival. Turn the small
right knob to highlight the desired transition
waypoint and press ENT.
5. A third window appears listing available runways
for the arrival. Turn the small right knob to
highlight the desired runway and press ENT.
Once the arrival or departure is selected, a
window appears to select the desired transi-
tion waypoint.
6. With “Load?” highlighted, press ENT. The
arrival is now inserted into your flight plan.
Select Departure
Select Departure? allows you to select a pub-
lishedstandardinstrumentdeparture(SID)forthe
departure airport, or replace the current departure
with a new selection. When using a direct-to, the
500W-series unit uses the nearest airport as a refer-
ence when displaying available departures. (See
Section 5 - Procedures for information on selecting
departures using the PROCkey.)Departuresare
not available for all airports, in which case the
departure windows will show “NONE.”
To select a departure for the departure airport:
1. From the Active Flight Plan Page, press
MENU to display the Active Flight Plan Page
Options.
2. Highlight the “Select Departure?” option from
the Active Flight Plan Page Options and press
ENT.
3. A window appears listing the available depar-
tures for your departure airport. Turn the small
right knob to select the desired departure and
press ENT.
4. A second window appears listing available
transitions for the departure. Turn the small
right knob to highlight the desired transition
waypoint and press ENT.
5. A third window appears listing available run-
ways for the departure. Turn the small right
knob to highlight the desired runway and press
ENT.
6. With “Load?” highlighted, press ENT. The
departure is now inserted into your flight
plan.
