Main Pages
Position Data Page:
Marine Mode

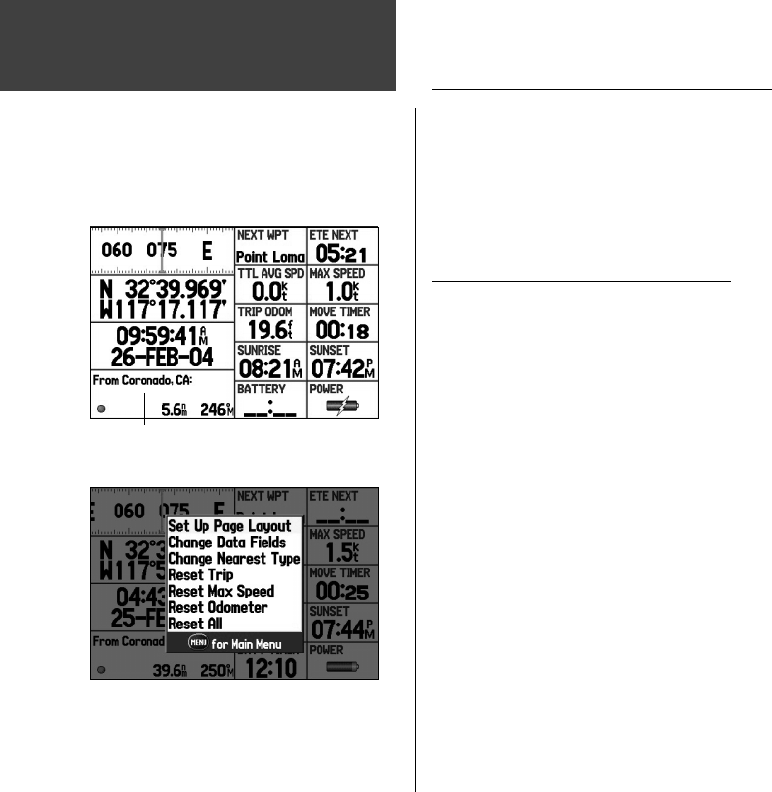

Position Data Page ( Marine Mode)
‘Waypoint’ is selected as the ‘Nearest Type’. The
Coronado, CA waypoint is the nearest waypoint.
Position Data Page ( Marine Mode)
Options Menu
Understanding the Position Data Page
The Position Data Page provides a quick reference for the important data you want to display while
navigating a route in Marine Mode. The default page displays a compass ribbon, your current latitude
and longitude, the current date and time, the location you are traveling from, and eight user-selectable
data fi elds. The compass ribbon is displayed at the top of the page to show your current heading along
with a red, vertical bar that indicates the bearing to your course. To stay on course, steer towards the
violet, vertical indicator (or arrows) until it lines up with the red bar in the middle.
Position Data Page Options Menu
The following options are available from the Position Data Page:
Set Up Page Layout – allows you to choose the layout and number of data fi elds.
Change Data Fields – allows you to specify the type of data displayed in each data fi eld displayed. See
the Appendix for a listing of the data fi elds.
Change Nearest Type – allows you to specify the type of item to be used as the nearest item: Automatic,
City, or Waypoint. As shown in the image to the right, ‘Waypoint’ is selected as the ‘Nearest Type’ and the
Coronado waypoint is the nearest waypoint to the unit’s current location.
Reset Trip – clears trip information, except the maximum speed and the odometer.
Reset Max Speed – clears the maximum speed.
Reset Odometer – clears the running total of the distance traveled since the odometer was last reset.
Reset All – clears all trip information including the maximum speed and odometer.
