Overview of the Test Set’s Built-In Tools
Using the RF Tools Program
Specifications
• Frequency Range: 0.4-1000 MHz, 1.7-2.0 GHz
• Swept Signal Level: -54 dBm to +10 dBm
Discrete Frequency Insertion Loss
Measurement Description
The discrete frequency insertion loss test measures the loss of a cable or
device at a specific frequency. DSP (Digital Signal Processing) is used to
determine the results of this test, making it more accurate than the
Swept Insertion Loss test.
Making the Measurement
1. Select Discrete Freq Insertion Loss from the Select Test (Main)
Menu. The Discrete Frequency Insertion Loss Test menu will
appear.

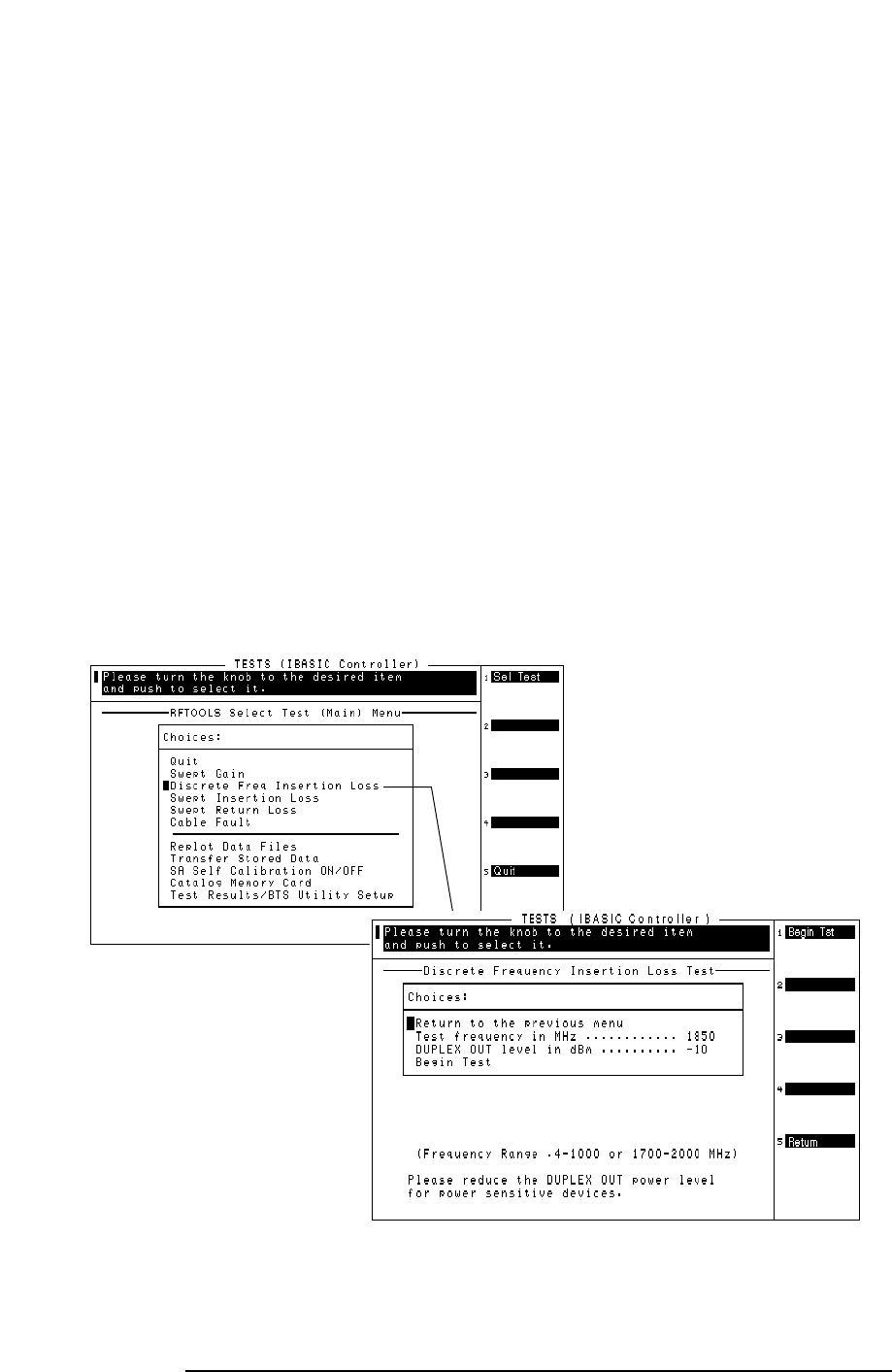

Figure 4-8 Selecting the Discrete Frequency Insertion Loss Test
2. Position the cursor at Test frequency in MHz and enter the
specific frequency to be tested.
Discrete Frequency
Insertion Loss
Select Test Menu
